HC-130/180 Automatic HFFS Horizontal Packaging Machine
Category:
- Product Description
-
- Commodity name: HC-130/180 Automatic HFFS Horizontal Packaging Machine
- Commodity ID: HC-130

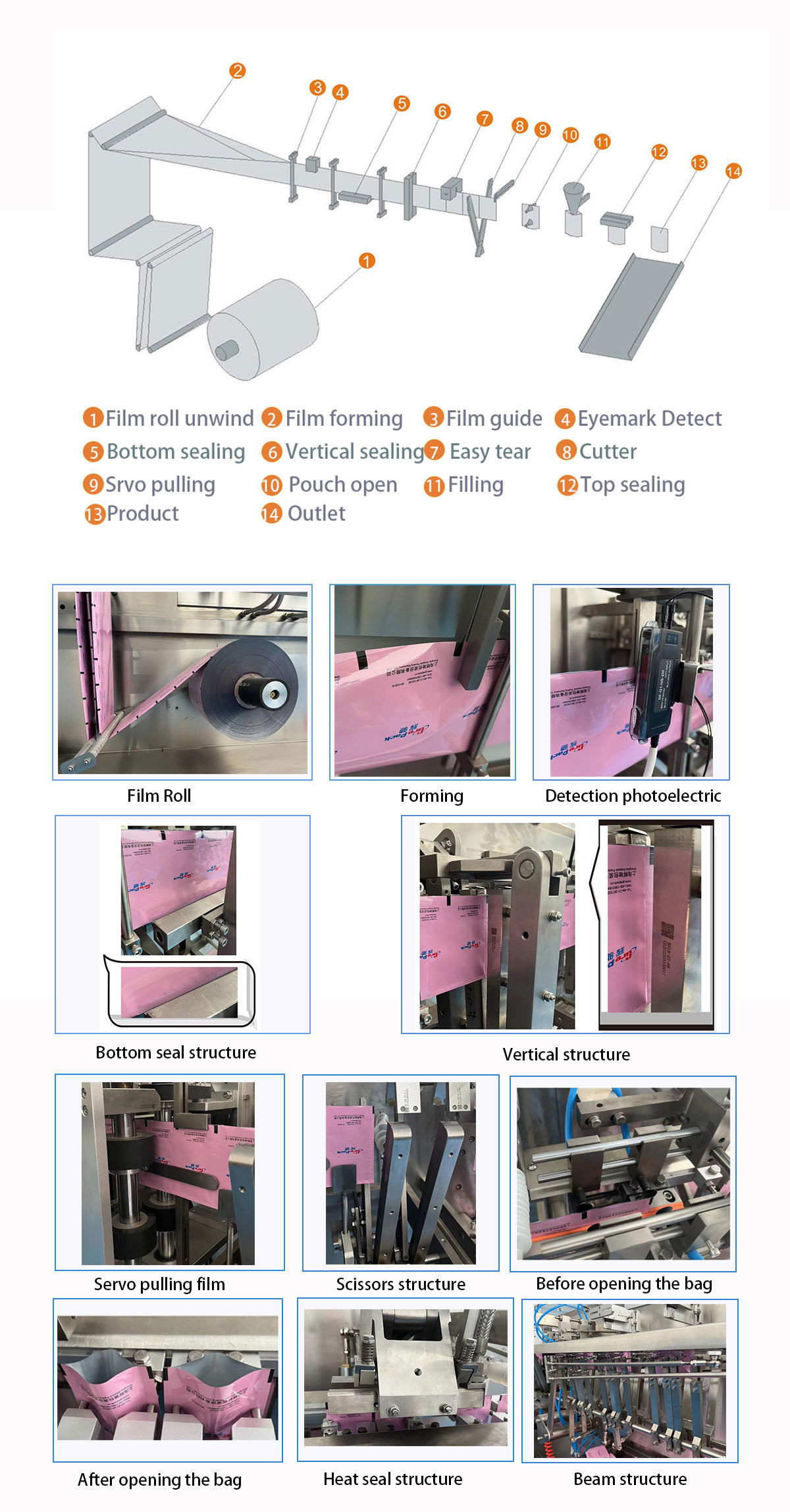

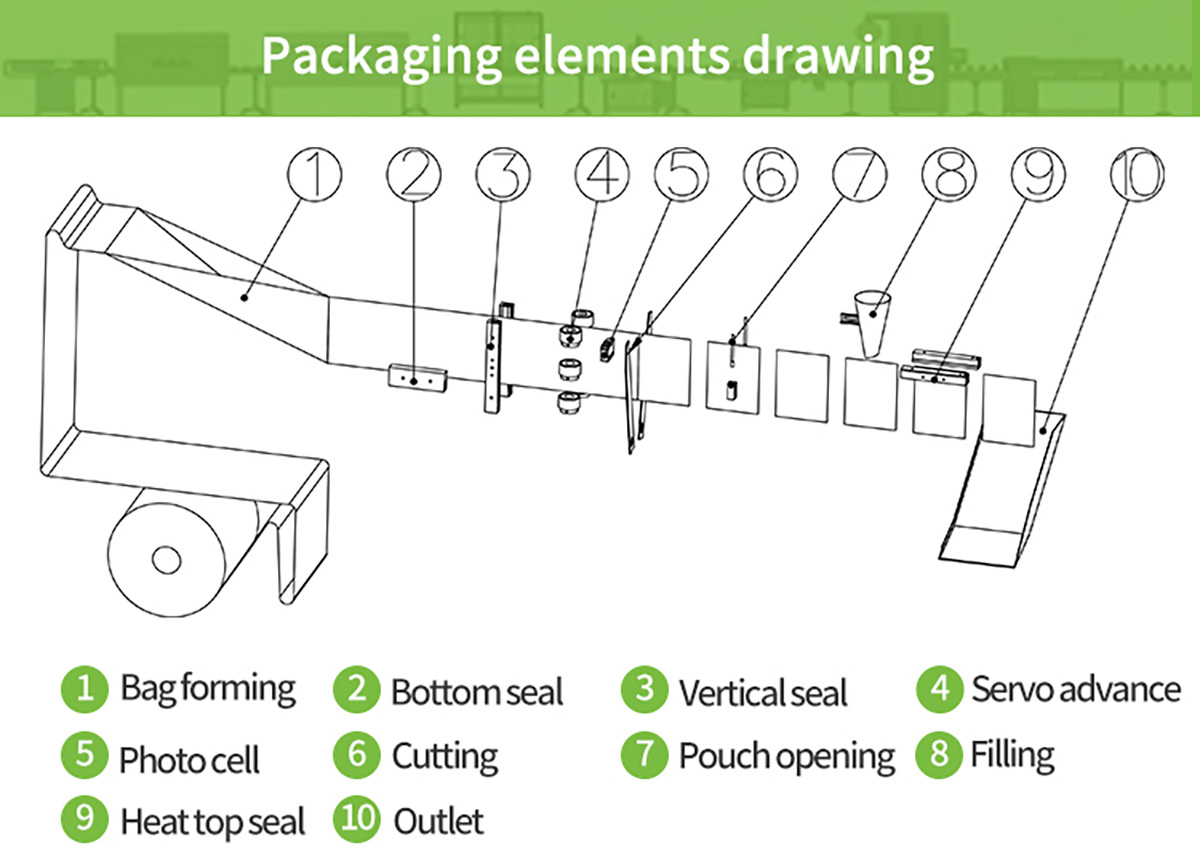

The Grepack HC-130/180 Series is a range of fully automatic Horizontal Form Fill Seal (HFFS) machines designed for flexible flat pouch packaging. Using roll-stock film, these machines automatically form, fill, and seal pouches in a horizontal line.
Model HC-130: Ideal for medium-sized sachets (Max width 130mm, Max 200ml).
Model HC-180: Designed for large-sized sachets (Max width 180mm, Max 500ml).
This series is the perfect cost-saving solution for packaging Food, Personal Care, and Chemical products into 3-Side Seal or 4-Side Seal flat pouches.
Key Features & Advantages
1. One Series, Multiple Sizes: We offer two distinct models to match your specific bag size requirements. Whether you are packing single-serve coffee or large detergent refills, the HC Series provides a stable and efficient platform.2. Multi-Functional Filling Systems: The machine can be equipped with various fillers to handle different states of matter:
For Liquid/Paste: Servo Piston Pump (e.g., Shampoo, Ketchup, Soup base).
For Powder: Auger Filler (e.g., Coffee powder, Spice powder, Flour).
For Granules: Volumetric Cup (e.g., Sugar, Seeds, Desiccant).
3. Premium Sealing Quality: Adopts high-strength horizontal sealing technology to ensure airtight and leak-proof seals. The machine produces flat, professional-looking pouches that enhance your brand image on the shelf.
4. HFFS Cost Efficiency: By using film rolls instead of premade pouches, the HC Series significantly reduces packaging material costs while maintaining high production speeds (up to 60 ppm).
5. Intelligent Control: Powered by PLC with a user-friendly Touch Screen interface. It features automatic photocell tracking to ensure the design is cut precisely at the right spot every time.
Wide Application Range
This machine series is widely used for:Personal Care: Sheet masks, Shampoo samples, Body lotion, Travel kits.
Food & Beverage: Ketchup, Mayonnaise, Salad dressing, Instant coffee, Spices, Soup mixes.
Daily Chemicals: Liquid detergent refills (HC-180), Powder additives.
Pharma: Granule sachets, Medical patches, Test kits.
Technical Parameters:
model
HC-130
HC-180
Type of Pouch 3/4 side seal
3/4 side seal
Min. pouch size 50×75mm
60×75mm
Max. pouch size 130×180mm
180×210mm
Packing speed ＜60 bags/min
＜60 bags/min
Packing range 200ml
400ml
Filling station
1 station
2 station
Power 5kw
5kw
Volt 380V 3P 50Hz
380V 3P 50Hz
Air consumption 300L/min
300L/min
Air pressure 0.6MPa
0.6MPa
Machine weight 800kg
1400kg
Machine dimension 2850×1000×1450mm
3350×1000×1450mm
(Note: Speeds and dimensions may vary slightly depending on product properties and customization.)
