Automatic Star Wheel Positioning Labeling Machine (Fixed-Point / Orientation)
Category:
Our cylindrical bottle labeling machine is purpose-built to solve high-volume labeling challenges for cylindrical objects across the pharmaceutical industry, daily chemical industry, and food industry. It specializes in automatic high-speed labeling—supporting both full-wrap (360°) and half-wrap labeling—and features an innovative astrolabe-turning structure that streamlines the workflow into three seamless steps: bottle in → label apply → bottle out. This design eliminates misalignment, reduces label waste, and significantly boosts the labeling pass rate.
- Product Description
-
- Commodity name: Automatic Star Wheel Positioning Labeling Machine (Fixed-Point / Orientation)
- Commodity ID: MPC-DWX
Our cylindrical bottle labeling machine is purpose-built to solve high-volume labeling challenges for cylindrical objects across the pharmaceutical industry, daily chemical industry, and food industry. It specializes in automatic high-speed labeling—supporting both full-wrap (360°) and half-wrap labeling—and features an innovative astrolabe-turning structure that streamlines the workflow into three seamless steps: bottle in → label apply → bottle out. This design eliminates misalignment, reduces label waste, and significantly boosts the labeling pass rate.
The MPC-DWX is a high-precision Star Wheel Type (Rotary) labeling machine designed for cylindrical containers that require Fixed-Point Orientation Labeling. Unlike standard belt-style labelers, it uses a customized star wheel system to hold each bottle securely, ensuring precise label placement relative to a specific mark, handle, or notch on the bottle.

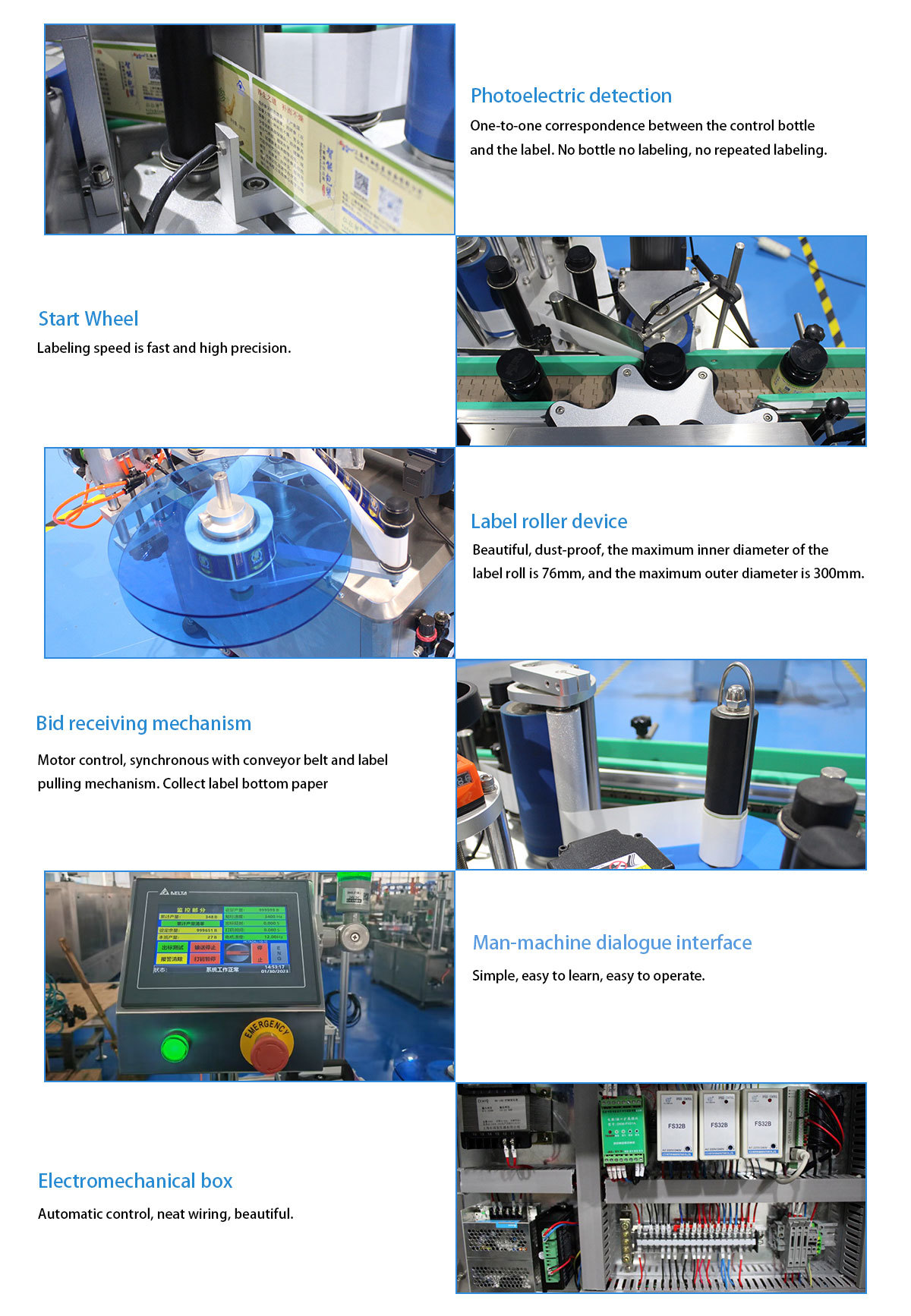

Key Features & Advantages
1. Star Wheel Stabilization (High Stability): Bottles are individually held in a star wheel pocket during the labeling process. This eliminates bottle wobbling, making it perfect for lightweight empty bottles or unstable containers that are difficult to label on a conveyor belt.
2. Precise Fixed-Point Labeling: Equipped with advanced sensors to detect bottle orientation marks (such as handles, bottom notches, or color marks). It ensures the label is applied exactly where you want it (e.g., centered opposite the handle).
3. Versatile Labeling Modes:
-
Single Label Positioning: Apply one label at a specific spot.
-
Double Label Positioning: Apply two labels (front and back) relative to each other.
-
Full Wrap-Around: Can also perform standard 360° labeling.
4. High Efficiency & Accuracy: The "Bottle-in, Label-apply, Bottle-out" rotary workflow is smoother and faster than linear positioning systems, ensuring a labeling accuracy of ±0.5mm.
5. Smart Control: Powered by PLC with a Touch Screen interface. Easy to switch between "Positioning Mode" and "Standard Round Bottle Mode".
Target Applications
-
Food & Beverage:
-
Jars with specific molding lines.
-
Canned food (Tin cans).
-
Beer bottles (Neck label positioning).
-
-
Daily Chemical:
-
Bottles with Handles: Laundry detergent jugs, Milk jugs.
-
Spray bottles (Label aligned with the trigger).
-
-
Pharmaceutical:
-
Vials requiring precise graduation alignment.
-
Main technical parameters：
Model MPC-DWX Voltage
AC110V/220V 50/60HZ
Power
2.5kw
Labeling Speed
40～80 bottles/min (speed adjustable, depending on the size of the object and the length of the label)
Labeling Accuracy
±0.5mm（Depends on product characteristics, softness and roundness）
Bottle Height
Height 40mm～～300mm（Can be customized according to customer requirements）
Label Specifications
Height 20mm～200mm Lenghth 20mm～220mm（Special specifications can be customized）
Paper Roll Size
Inner diameter Φ76mm Outer diameter Φ300（Max）
Machine Weight
280kg
Machine Size
2400mm×1000mm×1400mm
Key words:- Orientation Labeling Machine
- Automatic labeling machine
- warp around labeling machine
Provide solutions for your industry and prepare for your choice
