Sleeve Shrink Labeling Machine


  • Product Description
    • Commodity name: Sleeve Shrink Labeling Machine
    • Commodity ID: MPC- LS250

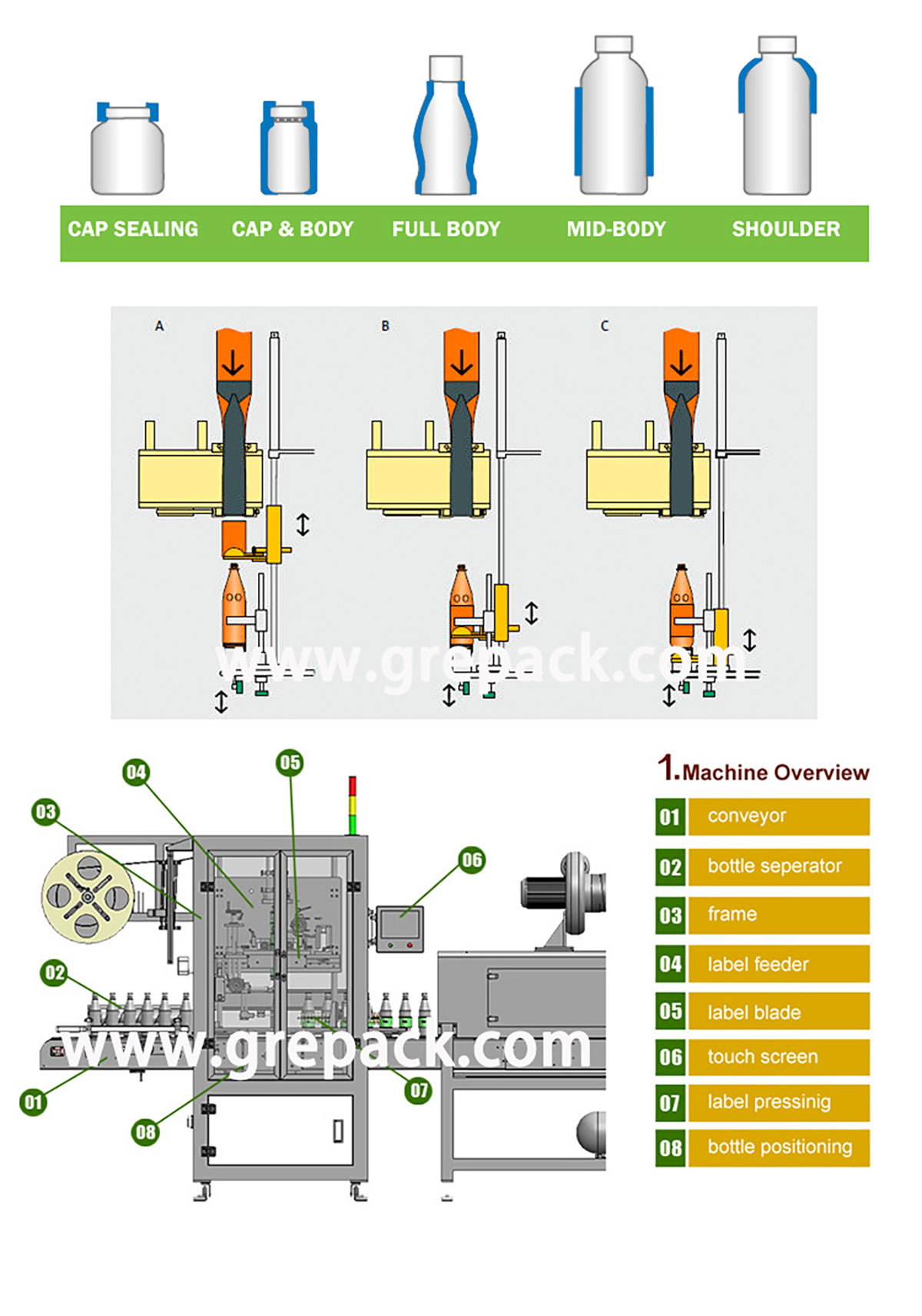

    1. Full cover stainless steel host: the whole machine is waterproof and does not rust

    2. Adjustable cutter head: original rotary cutting, imported cutter, long life

    3. Unitary central guide column: make the label guide more stable

    4. Synchronous bottle divider: more stable bottle delivery

    5. Label brushing group: the precision of the sleeve label machine is more accurate

    6. Label control electric eye frame: the original tail fin and electric eye are combined to improve the cutting accuracy of film material.

    7. Button control box: more user-friendly operation.

    8. Independent feeding rack: the position of the rack can be freely selected.

    9. Adopts PLC programmable controller, servo motor, servo drive, frequency converter, and sensor, and adopts positioning module to make the sleeve label accurate, fast, and stable.

    10. Various bottle types, such as round bottles, square bottles, flat bottles, curved bottles, cup shapes, etc.

    The main technical parameters:

    Voltage

    3P  AC380/220V

    Power

    3.0KW

    Labeling speed

    100-150 bottles/min (speed adjustable, depending on the size of the object and the length of the label)

    Labeling accuracy

    ±1mm(Depends on product characteristics,        hardness and roundness)

    Applicable bottle diameter

    28mm~125mm

    Applicable label length

    30mm~250mm

    Applicable label thickness

    0.035mm~0.13mm

    Air source pressure

    0.6-0.8Mpa

    Size

    1100L×1300W×2000H

    Key words:
    • shrink sleeve labeling machine
    • labeling machine
    • sleeve labeling machine
    • bottle labeling machine
