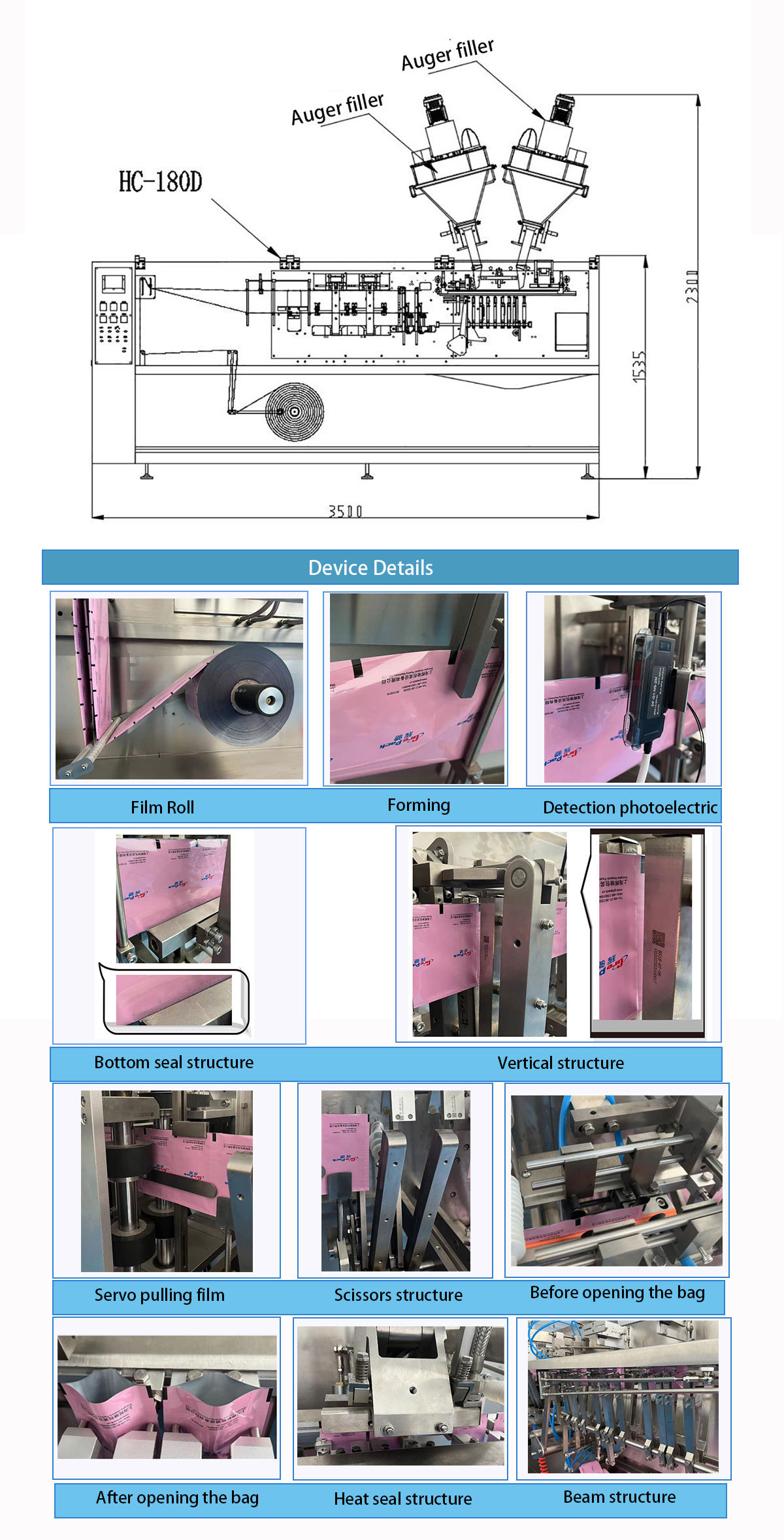

HC-180D Duplex Horizontal Flat Pouch Packing Machine
Category:
This series of packaging machines is a type that can meet the requirements of high-quality packaging, especially suitable for users with high production capacity. Its production capacity is twice that of ordinary horizontal machines, greatly improving production efficiency.
- Product Description
-
- Commodity name: HC-180D Duplex Horizontal Flat Pouch Packing Machine
- Commodity ID: HC-180D
This series of packaging machines is a type that can meet the requirements of high-quality packaging, especially suitable for users with high production capacity. Its production capacity is twice that of ordinary horizontal machines, greatly improving production efficiency.
This series of packaging machines is a type that can meet the requirements of high-quality packaging, especially suitable for users with high production capacity. Its production capacity is twice that of ordinary horizontal machines, greatly improving production efficiency. It can achieve three-side sealing and four-side sealing bag types, suitable for packaging materials such as powders, particles, liquids, pastes, solids, etc. It adopts roll film forming, which also reduces packaging costs.
Technical Parameters:
model
HC-180D
HC-240D bag type
3 or 4 side seal
3 or 4 side seal Smallest bag
60×75mm
65*90mm largest bag
90×220mm
120*210mm packing speed
80-100 pouches/min
80-100 pouches/min Packing capacity
Up to 100ml
up to 100ml power
5.5kw
8Kw Volt
380V 3 phase 50Hz
380V 3 phase 50Hz Air consumption
300L/min
300L/min working air pressure
0.6MPa
0.6MPa Machine weight
1600kg
2000KG Film thickness
60-180μ
80-140ų Machine Dimension
3800×1000×1450mm
5800mm×1000mm×2600mm
Key words:- horizontal packing machine
- automatic packing machine
- pouch packing machine
