Horizontal Top Spout Doypack packing machine


  • Product Description
    • Commodity name: Horizontal Top Spout Doypack packing machine
    • Commodity ID: HC-180SPZ ; HC-240SPZ

    This machine can realize the packaging needs of straight nozzle bags, and can also add hanging holes, special shapes, zippers, nozzles and other functions, realizing automatic bagging, automatic filling, automatic nozzle addition, automatic nozzle welding, and automatic sealing. It is used in the packaging of salt, lubricating oil, beverages, juice, yogurt, sauces, edible oil, and cleaning series.

    Main Technical Parameters :

    Model

    HC-180SPZ

    HC-240SPZ
    Type of Pouch Top Spouted Stand Pouch

    Min. Pouch size

    70×100mm

    120×130mm

    Max. Pouch size

    180×250mm

    240×320mm
    Packing speed

    <50 Pouch per min

    Packing Range

    max 1000ml

    max 2000ml
    Packing Station  2 2
    Power

    10kw

    12.5kw

    Volt

    380V 3P 50Hz

    Air Consumption

    400L/min

    500L/min

     Air Pressure

    0.7MPa

    0.8MPa
    Machine Weight 3000kg 3500kg
    Machine Dimension 7500×1500×2000mm 8700*1450*2000mm

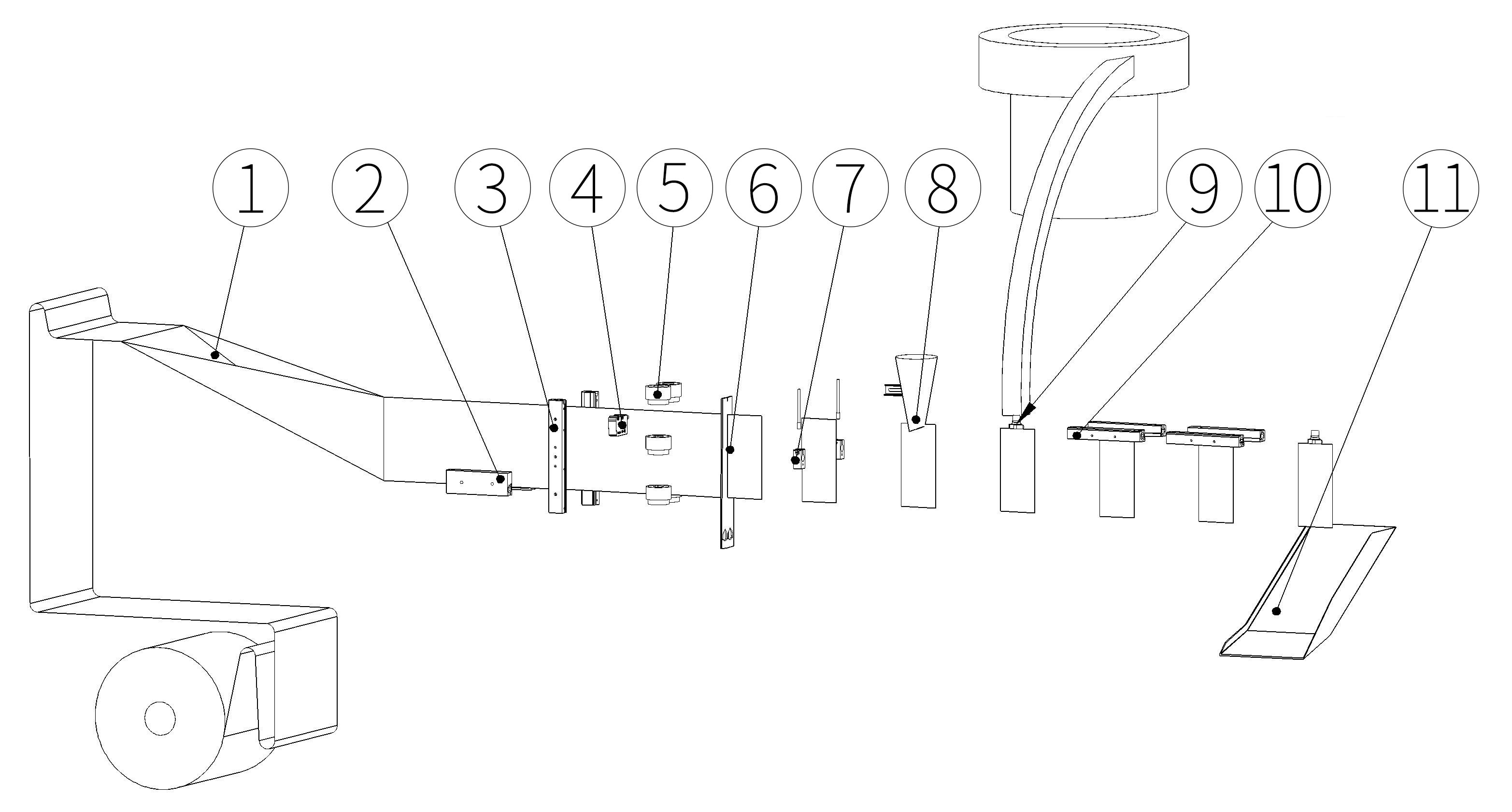

    Working process
    1、Bag forming 2、Bottom seal 3、Vertical seal 4、Photo cell
    5、Servo advance 6、Cutting 7、Pouch opening 8、Filling
    9、Insert top 10、Heat top seal 11、Outlet
