Square Bottle Labeling Machine
Category:
This series of products is suitable for food, cosmetics, health care products, edible oil, daily necessities and other industries. For different sizes of square, flat, tapered, cylindrical and other bottle shapes, it can complete single-sided and double-sided labeling of products.
- Product Description
-
- Commodity name: Square Bottle Labeling Machine
- Commodity ID: MPC-DS
This series of products is suitable for food, cosmetics, health care products, edible oil, daily necessities and other industries. For different sizes of square, flat, tapered, cylindrical and other bottle shapes, it can complete single-sided and double-sided labeling of products.
This series of products is suitable for food, cosmetics, health care products, edible oil, daily necessities and other industries. For different sizes of square, flat, tapered, cylindrical and other bottle shapes, it can complete single-sided and double-sided labeling of products.

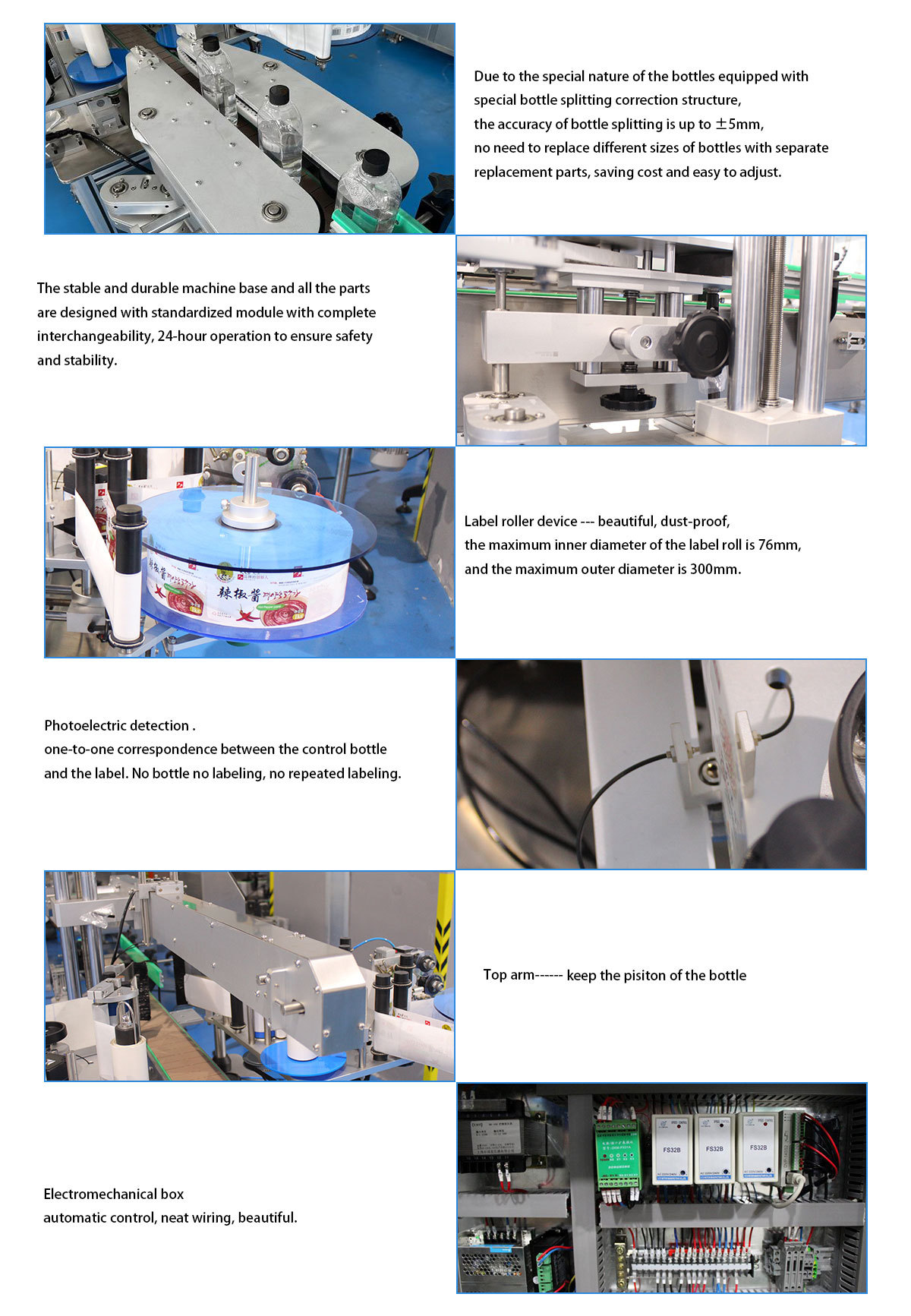

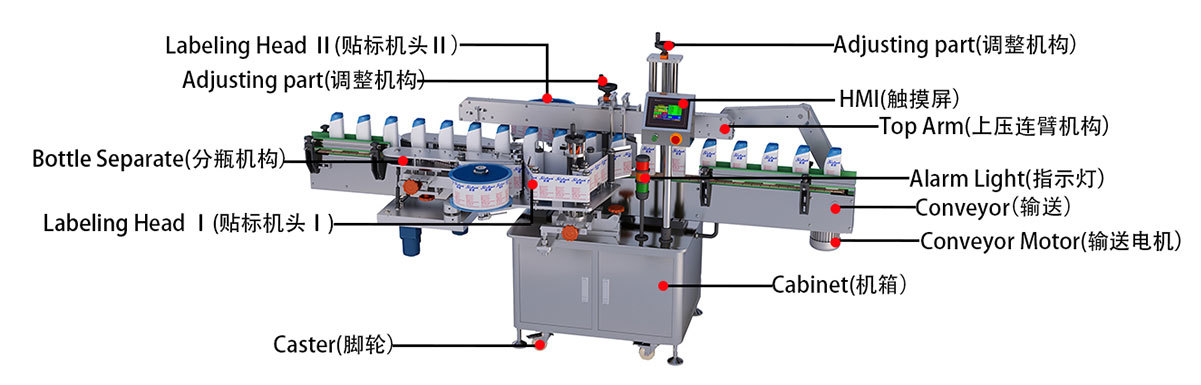

Working principle and structural features:
Put different packaging items into the conveyor belt of the labeling machine, and the conveyor belt drives the bottle into the bottle-separating area, and then passes through the calibration mechanism, and then enters the holding mechanism to bring the bottle into the labeling area. After entering the labeling area, the optical fiber detects the bottle and transmits the photoelectric signal to the PLC. After the PLC processes the output signal, it transmits the output signal to the servo motor, and the servo motor outputs the label. The labeled items are brought into the next process or container by the conveyor belt of the labeling machine.Operation method:
Imported touch-type human-machine interface, full Chinese and English display, just follow the instructions on the display, you can easily go online without any experience, greatly shortening the training time of personnel; the production speed can be set arbitrarily, and the production can be automatically adjusted Speed, can match the speed of any production line for the most efficient production operation.If there is any abnormal failure: if the label is used up, the tape is broken, the ribbon is used up, the counting setting is reached, the machine is abnormal, etc., it will automatically stop and send an alarm.Main technical parameters：
Voltage
AC220V 50/60HZ
Power
2.5KW
Labeling speed
50-100 bottles/min (speed adjustable, depending on the size of the object and the length of the label)
Conveyor line speed
Speed 0-30 m / min adjustable
Labeling accuracy
Flat surface ±1mm, curved surface ±P1.5mm (depending on product characteristics, softness and roundness)
Range of objects
H 40mm～～400mm（Can be customized according to customer requirements）
Label Specifications
L 15mm～～350mm H 10～～220mm（Special specifications can be customized）
Paper rolls
Inside diameter：Φ76mm Outer diameter：Φ350（Max）
Weight
220KG
Package Size
2800X1400X1500mm
Air pressure
0.6-0.8Mpa
Optional
Ribbon coding machine / inkjet printer/TTO

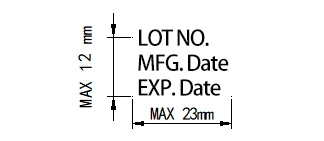

Ribbon coding machine area
（on a printing machine）
The applicable color ribbon is 25mm wide, the inner diameter of the paper tube is φ25mm, and the maximum outer diameter of the ribbon is ≤φ80mm. Both forward rotation and reverse rotation can be used, but the installation is different.
Install the steel type printing head: Install the steel type or lead type on the printing head according to the required order, lock the fixing bolts to lock the steel type or type, and use the ink pad or ink to test print on the blank paper to confirm whether it is smooth and correct.
Key words:- Double sides labeling machine
- bottle labeling machine
- automatic labeling machine
- double sided labeling machine
- self adhesive labeling machine
- automatic bottle labeling machine
- square bottle labeling machine
- sticker labeling machine
