Automatic Top Surface Flat Labeling Machine
Category:
MPC-PS top surface labeling machine for boxes, cartons, trays and suitable flat-topped containers. Confirm product support, label position and output with sample testing.
- Product Description
-
- Commodity name: Automatic Top Surface Flat Labeling Machine
- Commodity ID: MPC-PS
MPC-PS top surface labeling machine for boxes, cartons, trays and suitable flat-topped containers. Confirm product support, label position and output with sample testing.

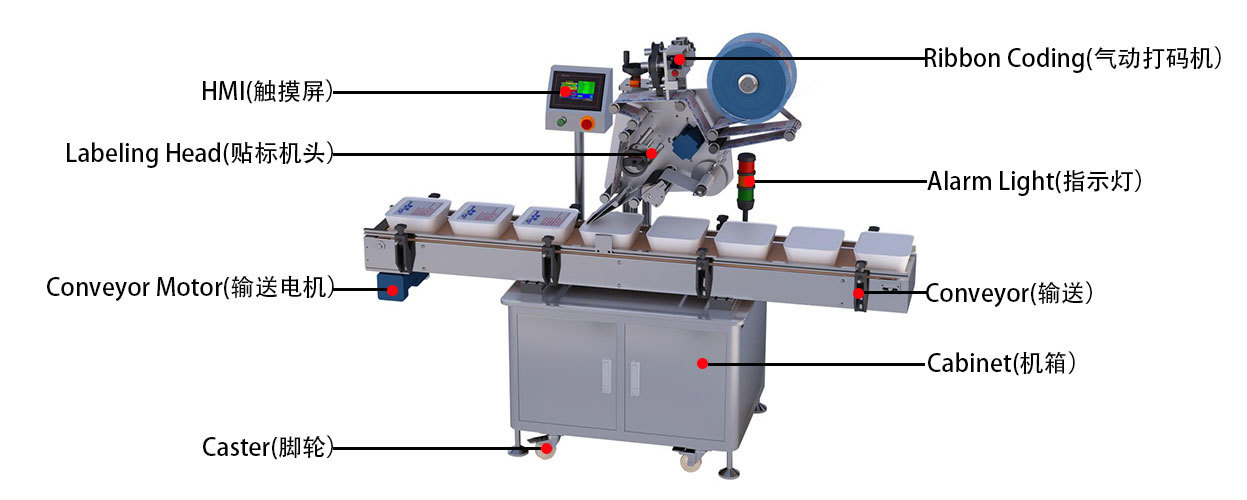

The Grepack MPC-PS automatic top surface labeling machine applies self-adhesive labels to accessible, flat upper surfaces. Typical applications include boxes, cartons, trays and plastic containers that can be conveyed steadily beneath the labeling head. Product and label samples are needed to confirm suitability.
Top-Surface Labeling Applications
Projects may include food trays and lunch boxes, cosmetic and household-product cartons, medicine boxes and electronics packaging. Flat bags, cards, loose caps or other lightweight items require an assessment of support, feeding and product movement. A flat surface alone does not establish that an item can run on this configuration.

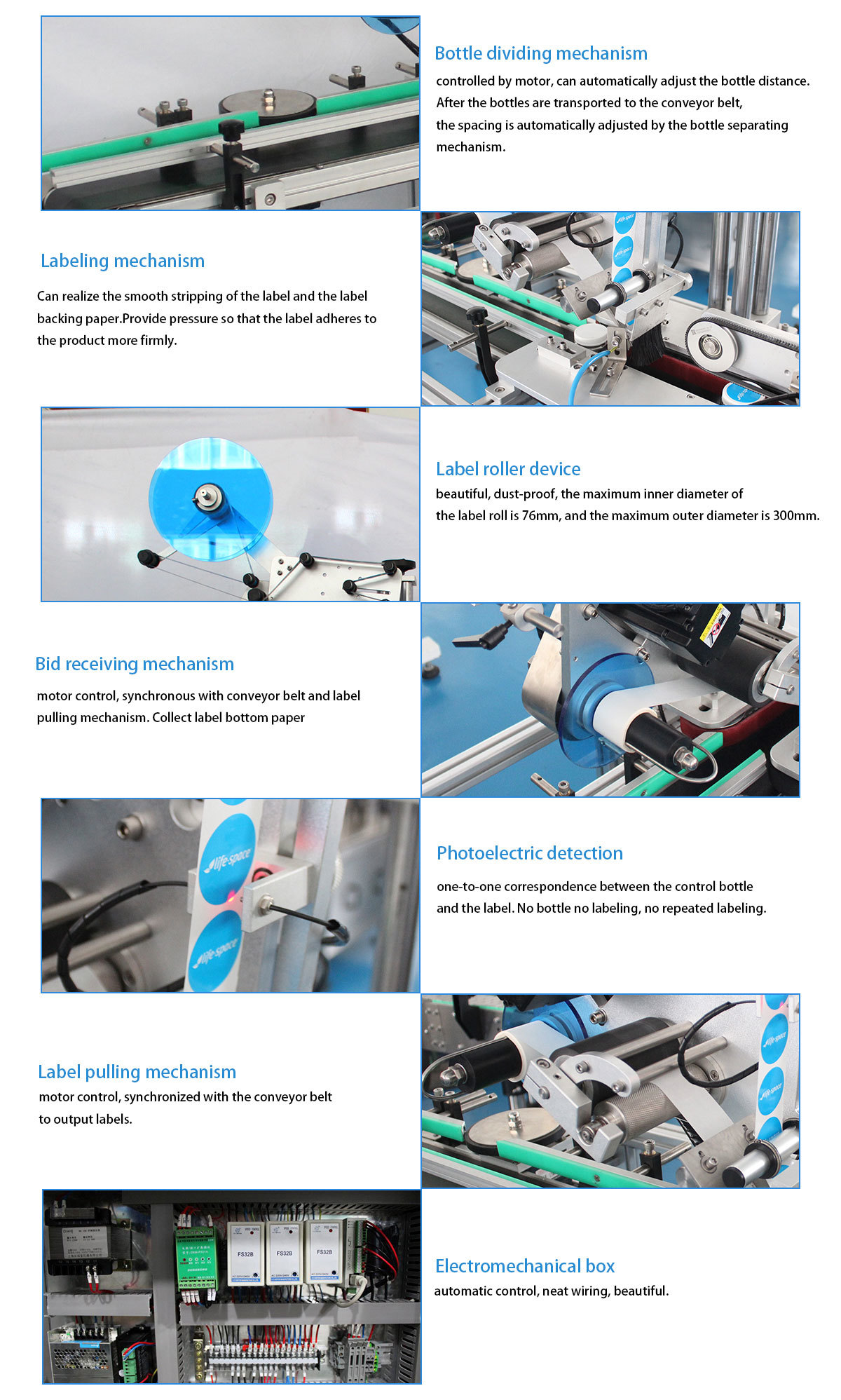

The conveying and pressing arrangement helps hold products during label application. The listed construction uses 304 stainless steel, and adjustment is provided for different products and labels. Confirm the setup and changeover requirements for each format.
Check Label Quality with Your Samples
- Provide product length, width, height and photos of the intended label area, including any recesses, edges or uneven surfaces.
- Send actual product and label samples, label dimensions, material and roll direction.
- Agree on label position, placement tolerance and acceptable appearance, including wrinkles, bubbles and edge lifting.
- Confirm required output, product spacing and conveyor connections during the trial.
The technical table below gives the published model specifications. Its accuracy figure depends on the flatness of the labeling surface. Confirm achievable speed and placement accuracy with your product and label combination before ordering. Request the documentation applicable to the supplied machine configuration.
For labels on the front and back of a bottle, compare the double-side bottle labeling machine. For application planning, see our flat labeling machine guide.
Technical Parameters:
Model MPC-PS Voltage AC110V/220V 50/60HZ Power 1kw Labeling speed 40-200pcs/min Labeling accuracy ±0.5mm (depending on the flatness of the object to be attached) Roll size Inner diameter Φ76mm Outer diameter Φ300mm (max) Weight 180kg Dimension 2000mm×1000mm×1500mm
Key words:- Self-adhesive Labeling Machine
- Automatic labeling mahcine
- Planar labeling machine
- top surface labeling machine
