Horizontal Doypack/Stand Up Pouch Packing Machine
Category:
Horizontal Stand Up Bag Packing Machine can packing liquid powder granule paste sauce, packing stand-up bag special-shaped bag zipper bag hanging hole bag
- Product Description
-
- Commodity name: Horizontal Doypack/Stand Up Pouch Packing Machine
- Commodity ID: HC-180S ; HC-240S
Horizontal Stand Up Bag Packing Machine can packing liquid powder granule paste sauce, packing stand-up bag special-shaped bag zipper bag hanging hole bag
This machine can package various materials including liquids, powders, granules, pastes, sauces, etc. The bag shapes are ordinary stand-up bags, special-shaped bags, hanging hole bags, zipper bags, etc. It is mainly suitable for food, daily chemicals, medicine, agrochemicals and other industries.
Main technical parameters
Model
HC-180S
HC-240S Type of Pouch Doypack, Shape,Hanging Hole Pouch Min. pouch size 70*100mm
120*130mm
Max. pouch size 180*250mm 240*320mm Packing speed 30-50ppm (100PPM duplex model 100PPM) Packing range ≤1200ml ≤2000ml Packing station 1 1 Powder 8KW 10KW Volt 380V 3P 50Hz. Air consumption 200L/min 300L/min. Air Pressure 0.7MPa. 0.8MPa. Machine weight 2300kg
2800kg Machine dimension 6450*1100*1400mm 7500*1250*2000mm

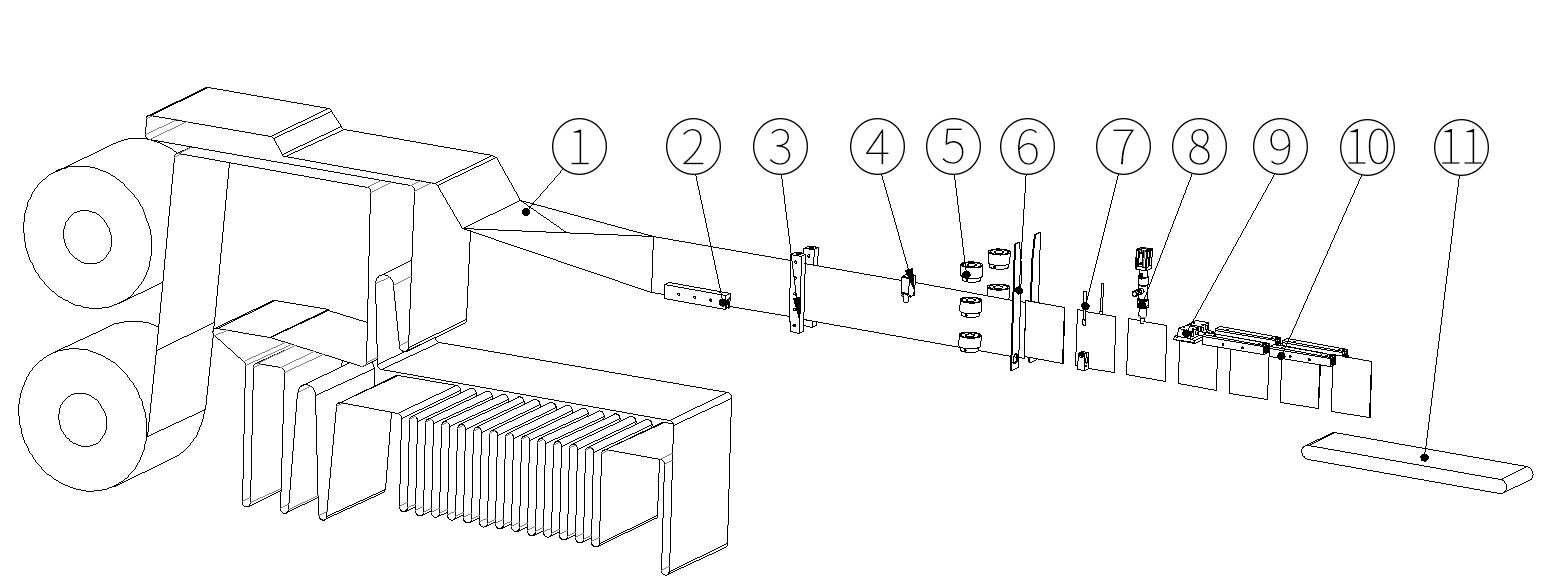

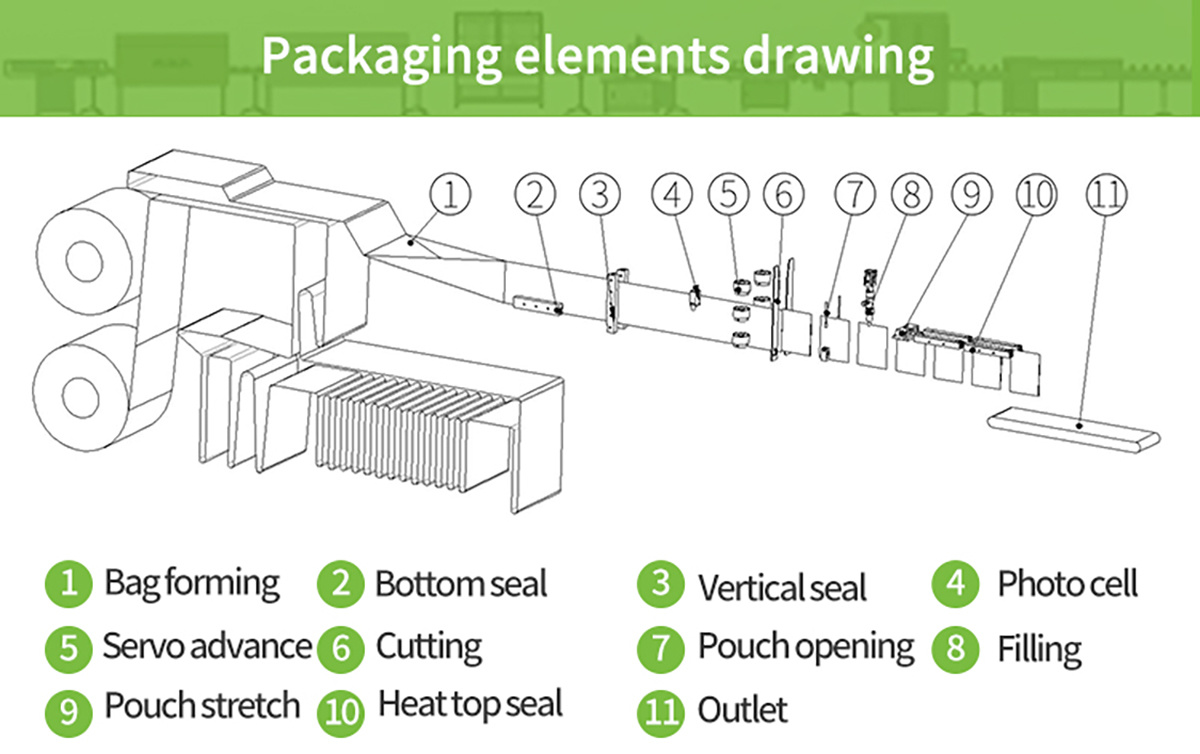

Packaging elements drawing 1、Bag forming 2、Bottom seal 3、Vertical seal 4、Photo cell 5、Servo advance 6、Cutting 7、Pouch opening 8、Filling 9、Pouch stretch 10、Heat top seal 11、Outlet Key words:- doypack packing machine
- food doyopack packing machine
- stand up pouch packing machine
- stand up packing machine
- doypack pouch packing machine
- standing pouch packing machine
- doypack packing machine automatic
- standing packing pouch machine
- stand up bag packing machine
- horizontal doypack packing machine
- doypack bag packing machine
- doypack powder packing machine
- doypack snack packing machine
- gusseted bags packing machine
- candy gusset bag packing machine
- suction stand up bag packing machine
