Automatic Lubricant Oil Filling Machine
Category:
Servo lubricant filling machine for motor oil, engine oil, gear oil, hydraulic oil, transmission oil and industrial lube oil. Anti-drip vacuum suck-back nozzles, 4-12 filling heads, 500-5000ml range, 1000-3000 BPH and +/-0.5% accuracy.
- Product Description
-
- Commodity name: Automatic Lubricant Oil Filling Machine
- Commodity ID: GP5000
Servo lubricant filling machine for motor oil, engine oil, gear oil, hydraulic oil, transmission oil and industrial lube oil. Anti-drip vacuum suck-back nozzles, 4-12 filling heads, 500-5000ml range, 1000-3000 BPH and +/-0.5% accuracy.
Automatic Lubricant Oil Filling Machine
Grepack automatic lubricant oil filling machine is a servo-driven piston filling system for automotive oil and industrial lubricant packaging, including motor oil, engine oil, gear oil, hydraulic oil, transmission oil, compressor oil and similar lube oil products.
Lubricant oil filling requires accurate volume control, clean anti-drip performance and stable handling of different viscosities. This machine uses servo piston filling, anti-drip vacuum suck-back nozzles and touchscreen recipe settings to help reduce oil residue, product giveaway and line downtime.

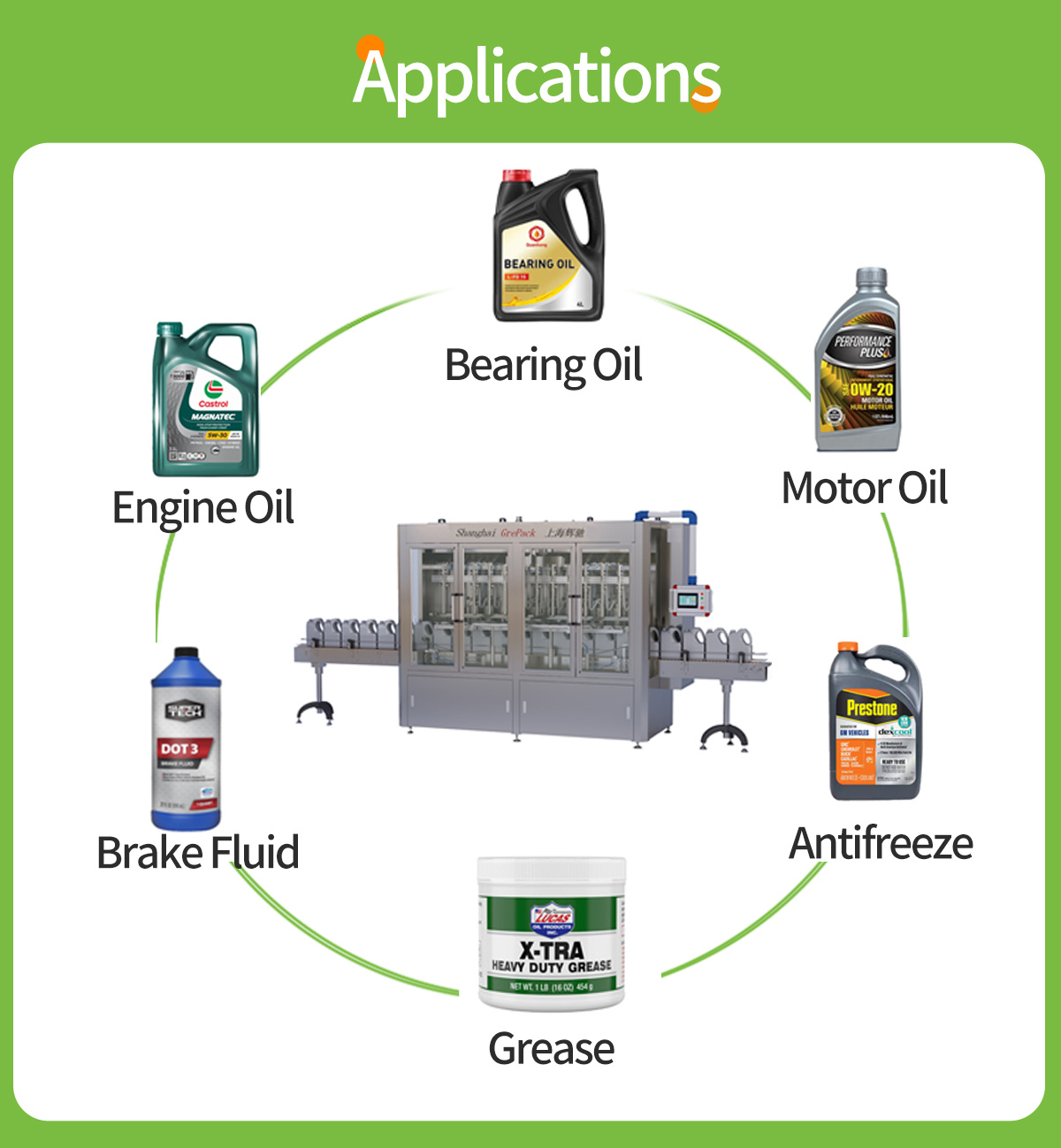

Applications - What Lubricant Products Can It Fill?
Automotive Oils
Motor oil, engine oil, gear oil, transmission oil, differential oil and power steering fluid for automotive lubricant packaging.
Industrial Lubricants
Hydraulic oil, compressor oil, turbine oil, cutting oil, metalworking fluid, spindle oil and similar industrial lube oil products.
Viscous Oil Products
Thicker gear oil, semi-fluid grease and high-viscosity lubricant products when the pump, valve and nozzle are configured for the product viscosity.
Selection note: Coolant, antifreeze, solvents and chemical additives should not be treated as standard lubricant oil applications. They require viscosity, corrosion and wetted-part review, and highly corrosive liquids should use a dedicated anti-corrosive filling machine.
Why Choose This Lubricant Oil Filling Machine?
Clean Anti-Drip Filling
Vacuum suck-back anti-drip nozzles help cut off stringing oil after filling, keeping bottle mouths, labels and conveyors cleaner.
Servo Piston Accuracy
Servo piston control supports repeatable filling volume and helps reduce giveaway for high-value engine oil, gear oil and hydraulic oil.
Built for Oil Viscosity
The filling path can be configured for thin hydraulic oil, medium motor oil and thicker lubricant products according to viscosity and container size.
Fast Changeover
PLC and HMI recipe memory makes it easier to switch between 1L bottles, 4L jugs, 5L containers and different oil products.
Key Features
1. Servo piston filling system for accurate lubricant oil filling from 500ml to 5000ml.
2. Anti-drip vacuum suck-back nozzles for cleaner oil bottle filling.
3. Siemens/Mitsubishi PLC and HMI touchscreen for recipe setting and fault alerts.
4. No-bottle no-fill detection to reduce leakage and misfilling during production.
5. 304/316L stainless steel product-contact parts available according to material requirements.
6. Can connect with bottle feeding, capping, labeling, date coding and carton packing equipment.
Model Selection Guide
For 500ml to 1L motor oil or engine oil bottles, a 4-head or 6-head lubricant oil filling machine is commonly selected for medium production. For 4L to 5L lubricant jugs, 8-head, 10-head or 12-head configurations can be selected according to the required output speed.
Send Grepack your oil viscosity, filling volume, bottle or jug size, target capacity, cap type and whether the oil strings or drips easily. We can recommend the right automatic lubricant oil filling machine and complete lube oil packaging line.
Technical Parameters
Series Filling Range Nozzle Options Power Accuracy GP125 30-125 ml 4 / 6 / 8 / 10 / 12 2.0-3.0 kW ±0.5% GP500 50-500 ml 4 / 6 / 8 / 10 / 12 2.5-3.5 kW ±0.5% GP1000 100-1000 ml 4 / 6 / 8 / 10 / 12 2.5-3.5 kW ±0.5% GP3000 500-3000 ml 4 / 6 / 8 / 10 / 12 3.0-5.0 kW ±0.5% GP5000 1000-5000 ml 4 / 6 / 8 / 10 / 12 3.5-6.5 kW ±0.5% Power and machine dimensions vary according to the selected nozzle quantity. Final specifications are subject to the confirmed machine configuration. Common requirements: AC220V/380V, 50/60Hz customizable voltage, 0.5-0.8 MPa air pressure.
Series Reference Volume 4 Nozzles 6 Nozzles 8 Nozzles 10 Nozzles 12 Nozzles GP125 100 ml 1200 BPH 1800 BPH 2400 BPH 3000 BPH 3600 BPH GP500 500 ml 1200 BPH 1800 BPH 2400 BPH 3000 BPH 3600 BPH GP1000 1000 ml 1200 BPH 1800 BPH 2400 BPH 3000 BPH 3600 BPH GP3000 1000 ml 1200 BPH 1500 BPH 2000 BPH 2400 BPH 3000 BPH GP5000 1000 ml 900 BPH 1400 BPH 1700 BPH 2100 BPH 2500 BPH Recommended Lubricant Oil Filling Line
A complete lubricant oil filling line can include bottle feeding, servo piston oil filling, cap sorting, automatic capping, foil sealing, labeling, date coding, carton packing and conveyor connection.
Need a motor oil, engine oil or industrial lubricant filling solution? Contact Grepack with your oil sample, container size and target speed. We will help you choose the right filling machine and complete packaging line.
Lubricant Filling Machine Buying Guide
When buyers search for a lubricant filling machine, lube oil filling machine or lubricant packaging machine, the key question is usually viscosity control. Motor oil, engine oil, gear oil and hydraulic oil can look similar on the bottle, but they need different piston volume settings, nozzle timing and anti-drip control.
Best for Motor oil, engine oil, lube oil, gear oil, hydraulic oil, transmission oil, compressor oil and industrial lubricants. Container range Small engine oil bottles, 1L/4L/5L lubricant bottles, HDPE jerry cans and customized oil containers. Why servo piston Servo piston filling helps keep stable fill volume across different oil viscosities and reduces giveaway on high-value lubricant products. Why anti-drip nozzles Vacuum suck-back and anti-drip nozzle design help keep bottles, caps, labels and conveyors cleaner during continuous oil filling. Common Questions Before Quotation
Can one oil filling machine handle different bottle sizes? Yes. The filling volume can be adjusted from the touchscreen, and recipes can be saved for different motor oil and industrial lubricant containers.
Can it be supplied as a complete lubricant oil filling line? Yes. Grepack can connect filling, capping, foil sealing, labeling, coding, carton packing and conveyors according to your required speed and plant layout.
Related Lubricant Oil Packaging Solutions
For a complete motor oil or industrial lubricant packaging project, buyers often combine the lubricant oil filling machine with capping, labeling, coding and carton packing equipment. These related pages can help you compare complete line options:
- complete lubricant oil filling line for bottle filling, capping, labeling and packing
- round bottle labeling machine for engine oil and lubricant bottles
- automatic liquid piston filling machine for other liquid and viscous products
Key words:- Motor Oil Filling Machine
- Lubricating Oil Filling Machine
- engine oil filling machine
- lube oil filling machine
