Top&Square Bottle Labeling Machine

  • Product Description
    • Commodity name: Top&Square Bottle Labeling Machine
    • Commodity ID: MPC-TS

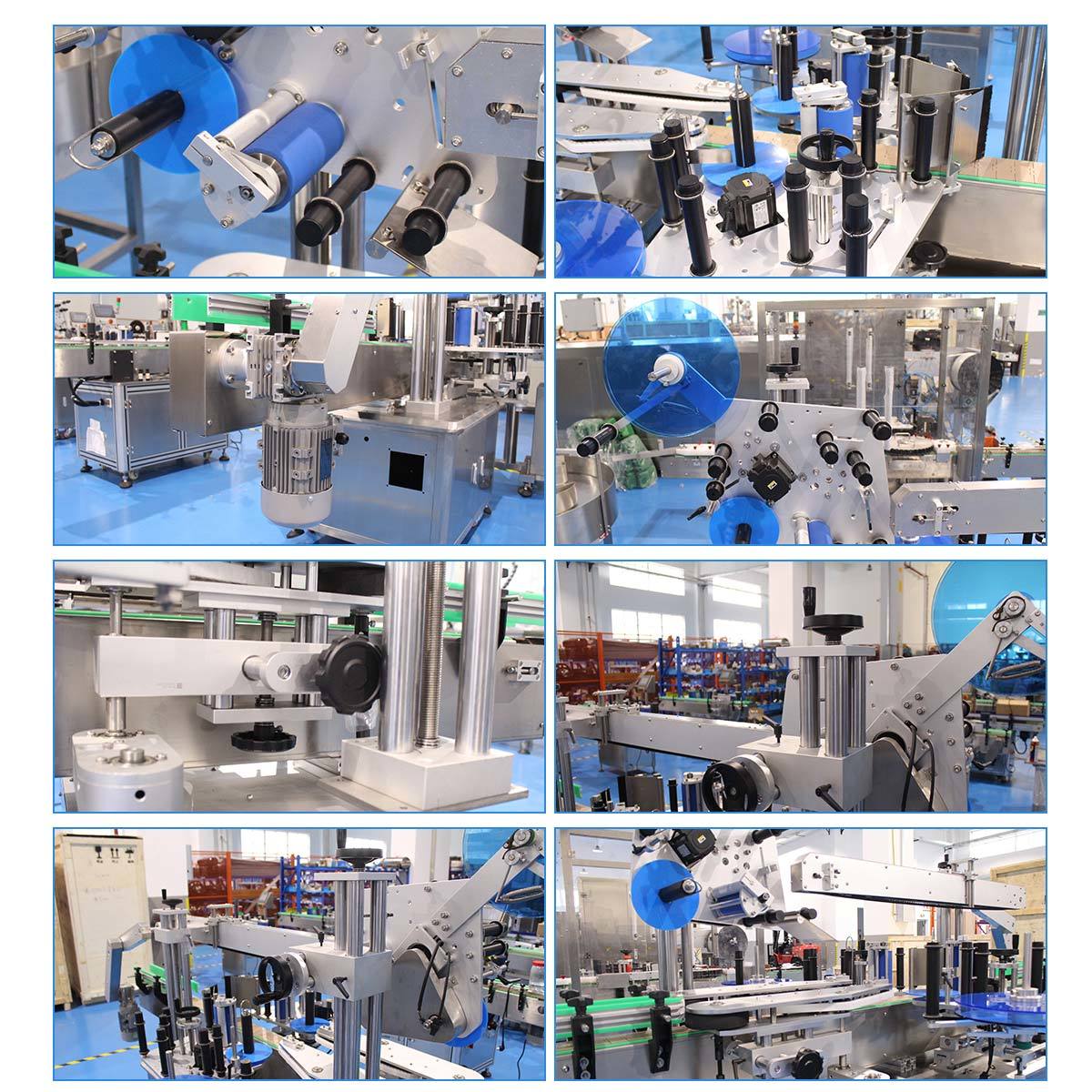

    Working principle and structural features:
    Different packaging items are in the conveyor belt of the labeling machine, and the conveyor belt drives the bottle into the bottle-separating area and then passes through the calibration mechanism, and then enters the holding mechanism to bring the bottle into the labeling area. After entering the labeling area, the optical fiber detects the bottle and transmits the photoelectric signal to the PLC. After the PLC processes the output signal, it transmits the output signal to the servo motor, and the servo motor outputs the label. The labeled items are brought into the next process or container by the conveyor belt of the labeling machine.

    The main technical parameters:


    AC220V   50/60HZ



    Labeling speed

    50-100 bottles/min (speed adjustable, depending on the size of the object and the length of the label)

    Conveyor speed

    Speed 0-30 meter/min adjustable

    Labeling accuracy

    Plane ±1mm, curved surface ±P1.5mm (depending on product characteristics, hardness, and roundness)

    Object range

    Height 40mm~~400mm(can customize)

    Label Specification

    Label Specification:L 15mm~~350mm  H 10~~220mm(can customize)

    Paper roll

    Inner diameter: Φ76mm Paper roll outer diameter: Φ350 (maximum)



    Machine dimension


    Air source pressure



    Ribbon coding machine/inkjet printer/TTO



    Ribbon coding machine area

    (on a printing machine)
    The applicable color ribbon is 25mm wide, the inner diameter of the paper tube is φ25mm, and the maximum outer diameter of the ribbon is ≤φ80mm. Both forward rotation and reverse rotation can be used, but the installation is different.

    Install the steel type printing head: Install the steel type or lead type on the printing head according to the required order, lock the fixing bolts to lock the steel type or type, and use the ink pad or ink to test print on the blank paper to confirm whether it is smooth and correct.
