HC-210G Horizontal Premade Pouch Packing Machine


  • Product Description
    • Commodity name: HC-210G Horizontal Premade Pouch Packing Machine
    • Commodity ID: HC-210G

    The machine is an automatic packing machine for premade bags. It can meet the requirements which need different specifications, big or small volume but small capacity. It can not only pack 3-side or 4-side sealed bags, but even also bags with hanging holes, standing pouches and shaped bags, and daypack bags with corner spouts, etc. It is applicable to powder, granules, liquid, paste and blocks, etc by using different measuring devices. It is convenient to switch the packing type.

    Features:

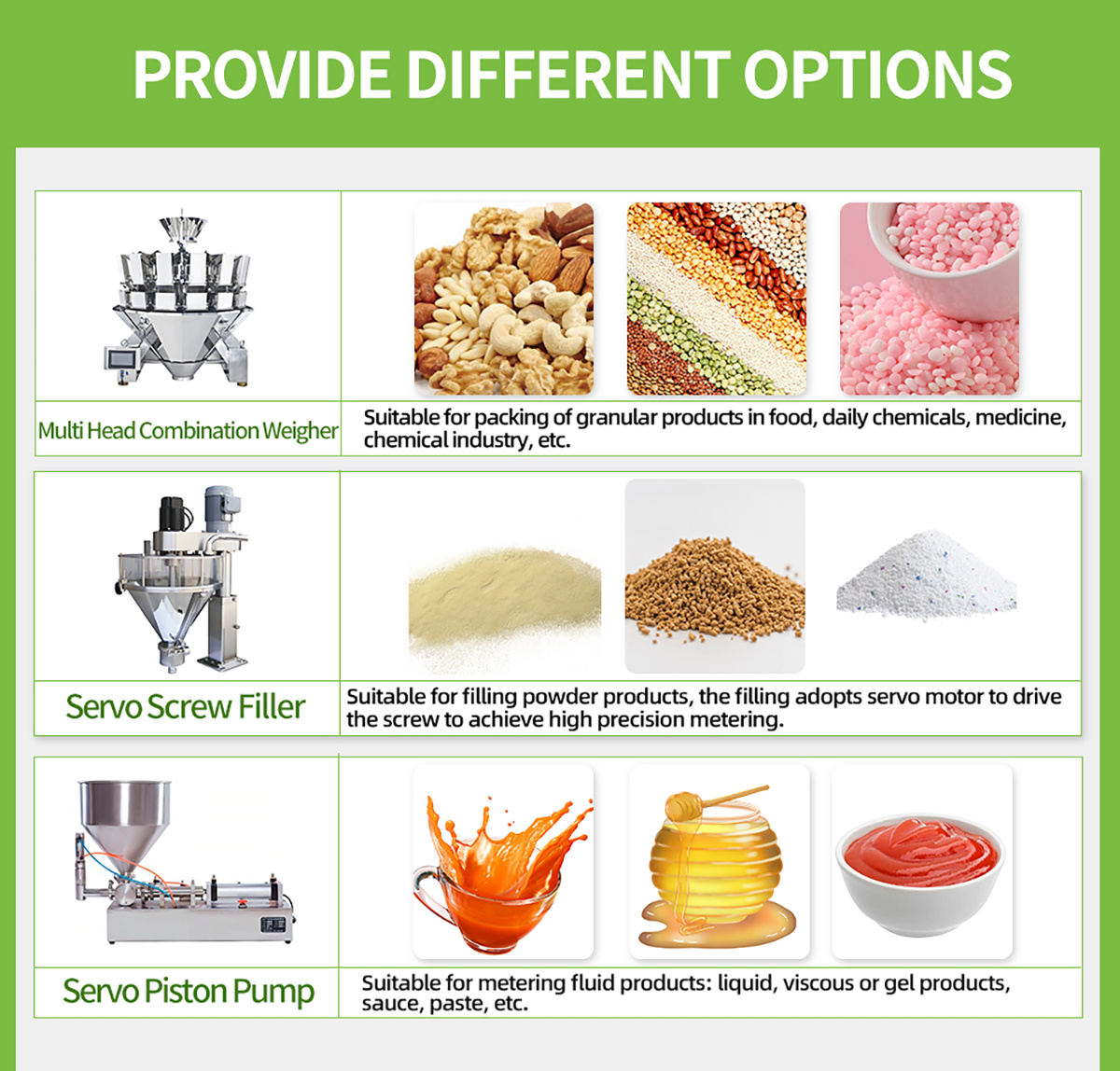

    1. Equipped with different metering devices, it can realize packing different materials such as powder, liquid, granules, sauce, etc.

    2 . Various bag types, it is very easy to change.

    3. Simple in structure, easy to operate

    4. Main electrical components are from Mitsubishi Japan, Schneider France, Keyence Japan, and so on.

    5. Sealings with hot seal and cold sealing with smooth sealing effect

    6. No bag open , no fill and seal to save premade bags

    7.Hang hole cutting and top spout adding are optional .

    Technical Parameters:

    Model HC-210G
    Type Of Pouch 3/4 side seal/stand pouch
    Min. Pouch Size 100 x 120mm
    Max. Pouch Size 220 X 300mm
    Packing Speed < 60 pouch per min.
    Packing Range  max. 1000ml
    Filling Station
    Power 3.5KW
    Volt 380V 3P 50Hz.
    Air Consumption 300L/min
    Air Pressure 0.7 MPa.
    Machine Weight 1000kg
    Machine Dimension 2600 X 1000 X 1300mm



    Key words:
    • Pouch Packing Machine
    • Horizontal Packing Machine
    • Premade Pouch Packing Machine
