- Product Description
-
- Commodity name: Duplex Horizontal Shaped Doypack Packing Machine
- Commodity ID: HC-180SDY

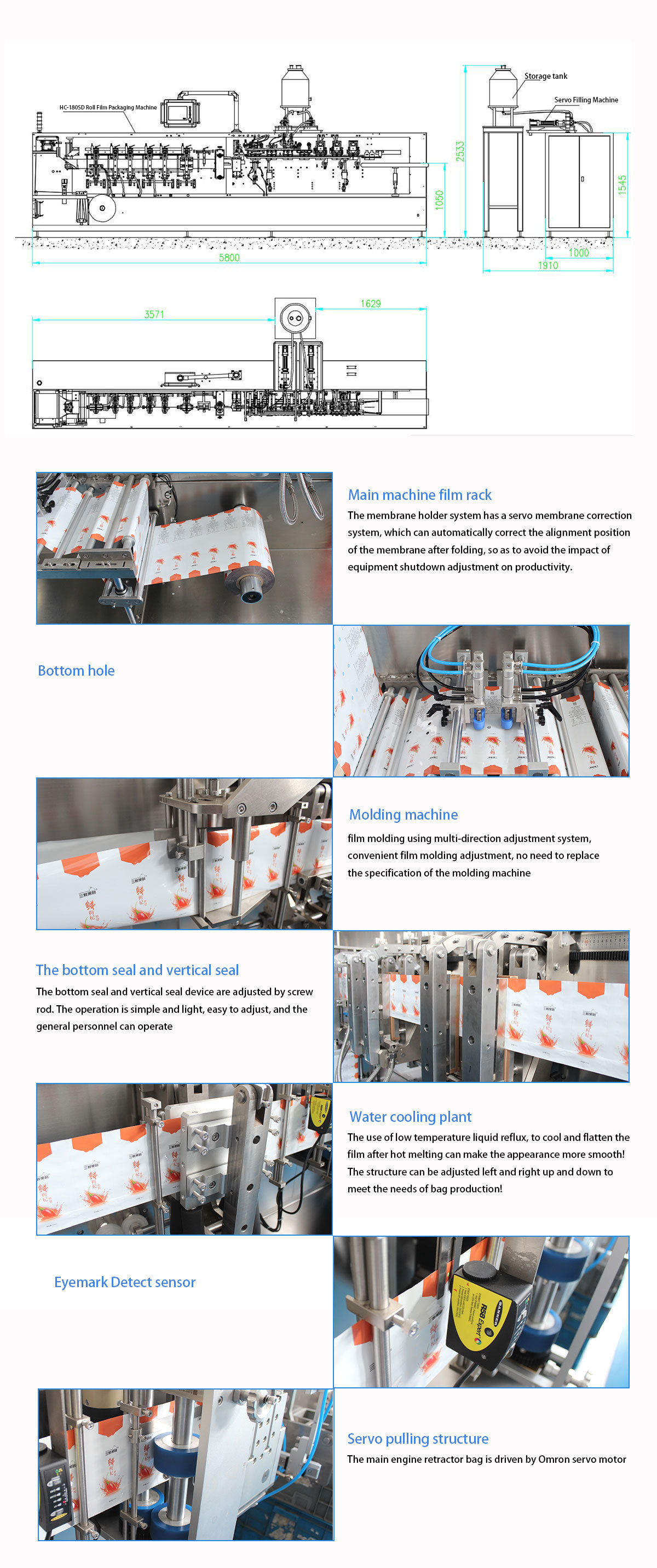

The machine adopts a full servo motion control system, and automatic roll film bag forming, the machine can customize flat bags, stand-up bags, special-shaped bags, and material filling and sealing functions according to customer needs, and is equipped with storage and unloading devices, which can realize functional drinks, enzymes, etc. Fully automatic packaging of puree, health care products, probiotic milk products, pastes, sauces, and other materials. The machine has high stability, and the finished product has firm sealing and a beautiful appearance. Automatic production project suitable for special-shaped bags
Technical Parameters:
Item
parameter
Packing parameters
minimum bag
65*130mm（Width * height）
Maximum bag
95*180mm（Width * height）
Packing volume
Max to 100 ml
packaging speed
60-80 bag/Min
Mold Thickness
80-140ų
Specification of equipment
Machine size
5800mm×1000mm×2600mm
（Length * width * height）Gross machine weight
2000KG
Working condition
Environment temperature
-10℃—＋55℃
Relative humidity
≤85%
Power voltage
AC380V、50Hz
Working Air Pressure
0.6-0.7 Mpa
Air consumption
400L/min
power
8Kw
Key words:- Shaped Pouch Duplex Packing Machine
- Duplex Packing Machine
- Shaped Pouch Packing machine
Provide solutions for your industry and prepare for your choice
