Capsule counting machine
Category:
The counter and filler machine adopts advanced vibration and multi-channel feeder, computer control, dynamic scan counting, transfer the bottle automatically, system test automatically.
- Product Description
-
- Commodity name: Capsule counting machine
- Commodity ID: Capsule counting machine
The counter and filler machine adopts advanced vibration and multi-channel feeder, computer control, dynamic scan counting, transfer the bottle automatically, system test automatically.

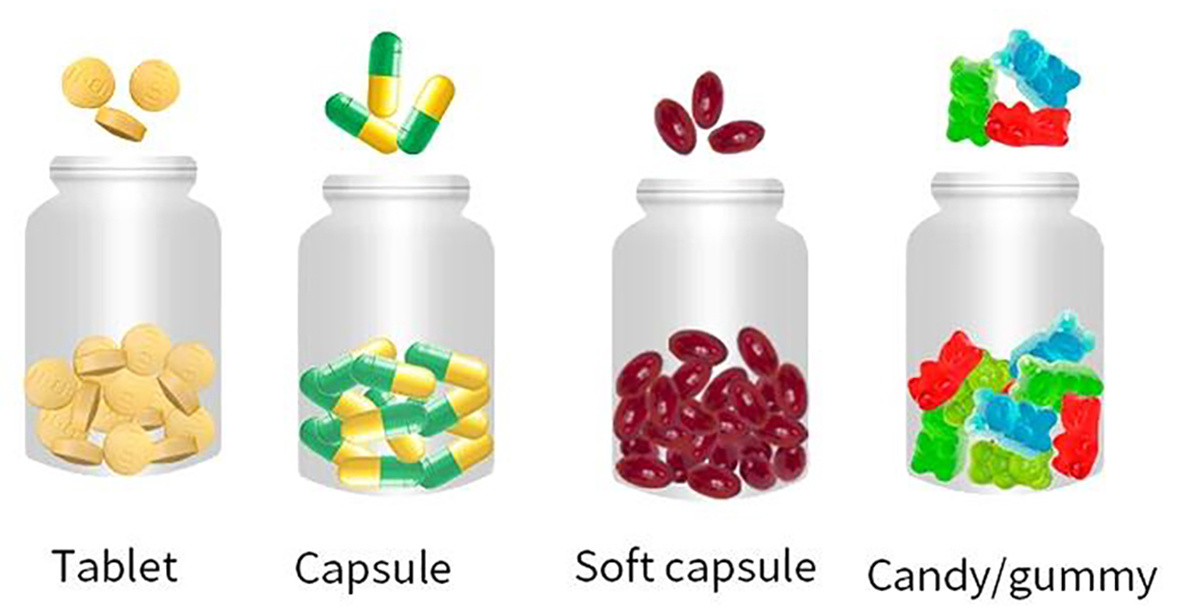

The counter and filler machine adopts advanced vibration and multi-channel feeder, computer control, dynamic scan counting, transfer the bottle automatically, system test automatically. with error alarm, stop automatically and other advanced technology. This machine designed with GMP requirement. Compose the light, electric machinery to one set, which is suitable for tablet, capsule counting and filling in pharmaceutical or food business. The machine can be widely used for all kinds of different tablets, capsules, pills in different shape and size. The capacity and accuracy of counting and filling reach the advanced level.
Technical Parameter
Model
GP-CF-8
GP-CF-16
Number of channels 8 16 Capacity ≤ 6500 Pcs/minute(Take a 5mm diameter tablet as an example) ≤ 13000 Pcs/minute(Take a 5mm diameter tablet as an example) Bottle Specification
diameter : 25-100mm ; height : max 220mm
diameter : 25-100mm ; height : max 220mm Voltage
AC 220V : 50/60Hz
AC 220V : 50/60Hz Air Consumption
3kg/cm3 ; 200L/min
6kg/cm3 ; 250L/min Power
1.5 KW
2 KW
Dimension 2300*1100*1520mm 2840*1550*1700mm Weight 450kg 800kg Sample
