Automatic Piston Sauce Bottle Filling Machine


Product Description

  • This machine is a volumetric automatic paste-filling machine, suitable for food, medicine, pesticide, daily chemical, and other industries. Such as hot sauce, ketchup, honey, salad dressing, face cream, and so on.

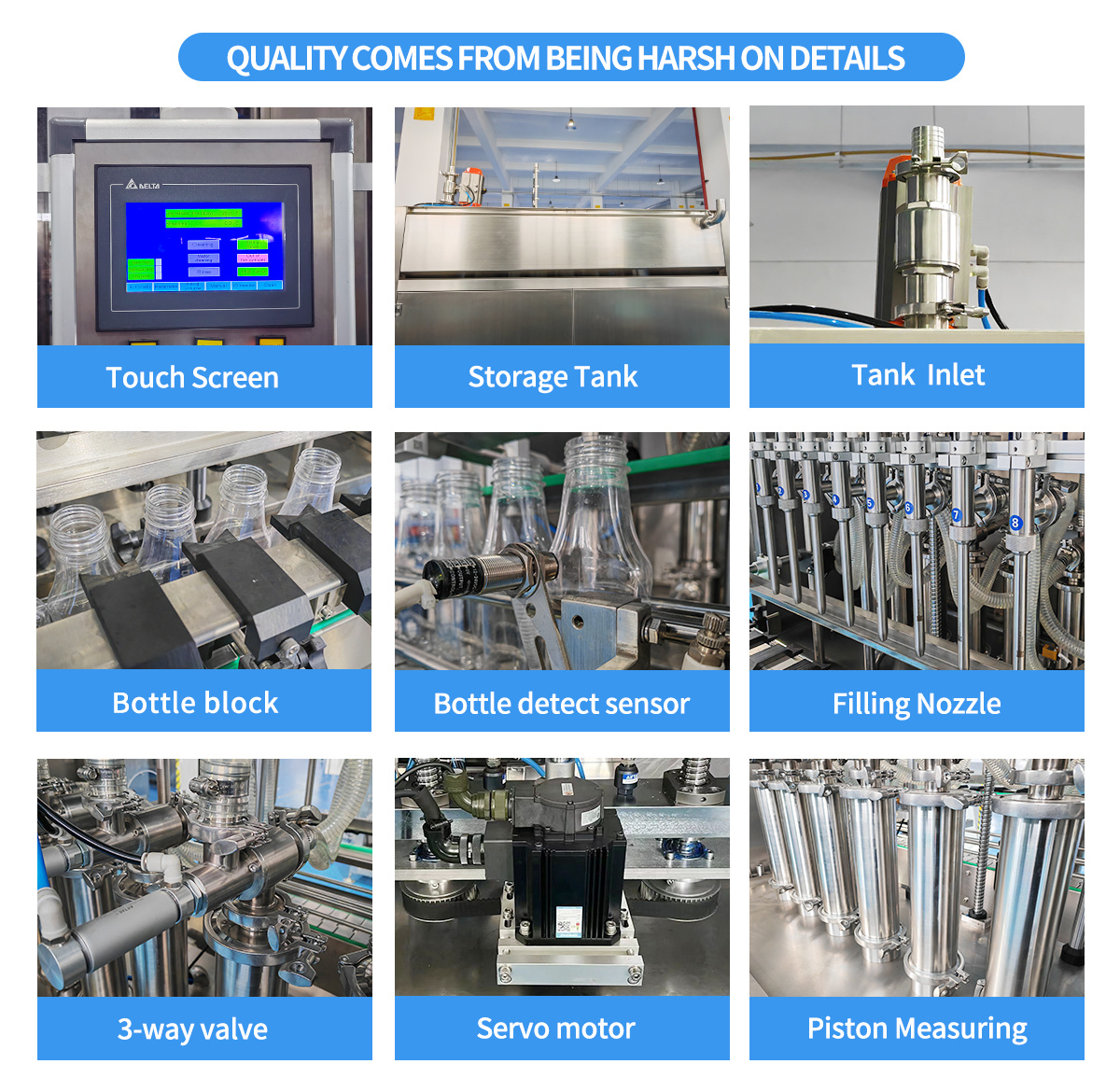

    Features
    1 Various Filling range options, the operator can set up different filling volumes from the Touch screen.

    2. Using a special rotary valve, larger particles in the sauce can pass through.

    3. Adopt double-speed filling technology to improve production efficiency and prevent material ejection.

    4. Specially made filling head, so that the material will not stick to the filling head.

    5. Using PLC control, the filling volume can be set directly on the touch screen.

    6. Driving mode: Servo-driven piston is adopted; a servo filling system is adopted.

    Technical parameter:

    Model GP-4 GP-6 GP-8 GP-10 GP-12
    Filling Nozzle 4 6 8 10 12
    Filling Range 30-125ml,50-500ml,100-1000ml,500-3000ml,1000-5000ml
    Filling Capacity(Based on 1000ml) ≤ 1200 bottles/hour ≤ 1800 bottles/hour ≤2400 bottles/hour ≤3000 bottles/hour ≤3600 bottles/hour
    Filling Accuracy ≤±0.5%
    Voltage AC220V/380V 50-60HZ (Special customizable)
    Air Pressure 0.5-0.8Mpa
    Power 2.0-3.5KW 2.0-4.0KW 2.5-4.5KW 3.0-5.5KW 3.0-6.5KW
